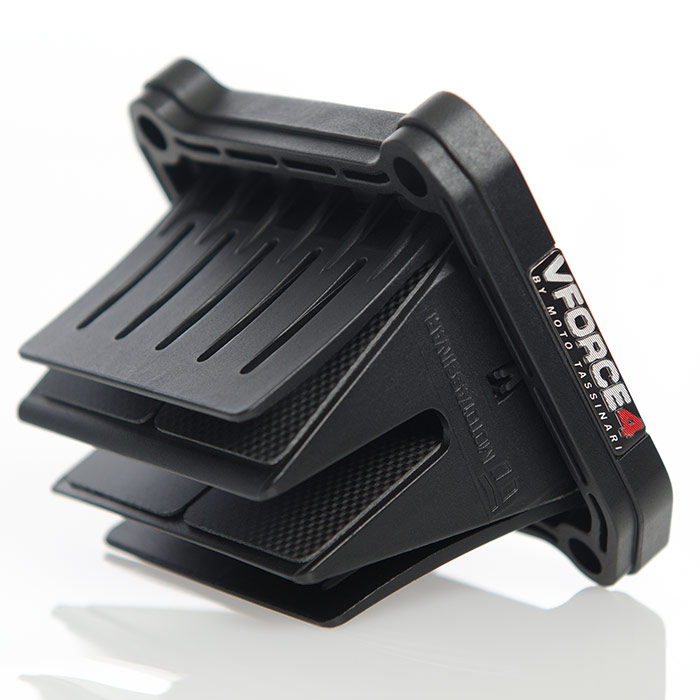

V-Force 4 - V-FORCE Reed Valve - MOTO TASSINARI

Item available
DISP
V-Force 4 - V-FORCE Reed Valve - MOTO TASSINARI
-15%
180,56 € 153,48 €
Item available
Code: MTV417A
Brand: BETA, HUSABERG, HUSQVARNA, KTM
Price List: 180,56 € vat included
Price hot'n'rare: vat included 153,48 € -15%
Note: - on SX 250 '03 and EXC 250/300 '04-'06 use intake boot from SX 250 '04 - Spares: reeds MT4P672H, gasket MTG316 - Betamotor OEM: 026.01.007.80.00
Item available

Type Brand Model From To Note
Off-Road MC BETA RR 250 2T 2013 2024
Off-Road MC BETA RR 250 Race Edition 2020 2023
Off-Road MC BETA RR 250 X-PRO 2025 2025
Off-Road MC BETA X-Trainer 250 2T 2020 2025
Off-Road MC BETA RR 300 2019 2024
Off-Road MC BETA RR 300 2T 2013 2022
Off-Road MC BETA RR 300 Race Edition 2020 2023
Off-Road MC BETA RR 300 X-PRO 2025 2025
Off-Road MC BETA RX 300 2021 2021
Off-Road MC BETA X-Trainer 300 2T 2020 2025
Off-Road MC HUSABERG TE 250 2T 2011 2014
Off-Road MC HUSABERG TE 300 2T 2011 2014
Off-Road MC HUSQVARNA TC 250 2T 2014 2016
Off-Road MC HUSQVARNA TE 250 2T carb. 2014 2016
Off-Road MC HUSQVARNA TE 300 2T carb. 2014 2016
Off-Road MC KTM EXC 250 2T (->2006) 2004 2005
Off-Road MC KTM EXC 250 2T (2007->) 2007 2007
Off-Road MC KTM SX 250 (2003-16) 2004 2016
Off-Road MC KTM EXC 300 ('00->'07) 2004 2007
Off-Road MC KTM EXC 300 E 2007 2007

Informazioni

The all-new VForce4 is built upon the solid foundation that has made the VForce3 such a success for the last 10 years. While the VForce3 has been continually refined over the years, this is a complete redesign of the entire system.

We jokingly say, "The only thing we didn't change is the bolt pattern." However this is actually quite true. All the components that go into making a VForce reed valve system have been significantly changed since the VForce3.

While the most obvious change on the all-new VForce4 is certainly the full-length reed stops, let's take a look at some of the other significant changes as well…

  • All-new reed petal resin system, carbon fiber and lay-up
  • Pre-curved reed petal ensures better seal at tip
  • Wider reed cage for maximum airflow
  • Combined reed tip area increased by 10.5% resulting in increased total air flow
  • Airfoil shape added to cage tip to increase air velocity from outer ports
  • Long reed stops added to progressively slow petal tip velocity, for increased petal durability
  • Reduced frontal area of central wing by 15.6% combined with a more aerodynamic shape
